Name: Shadow Trail Origin
Brand: Zerode Bikes
Price: 9085.0 NZD
Availability: OutOfStock

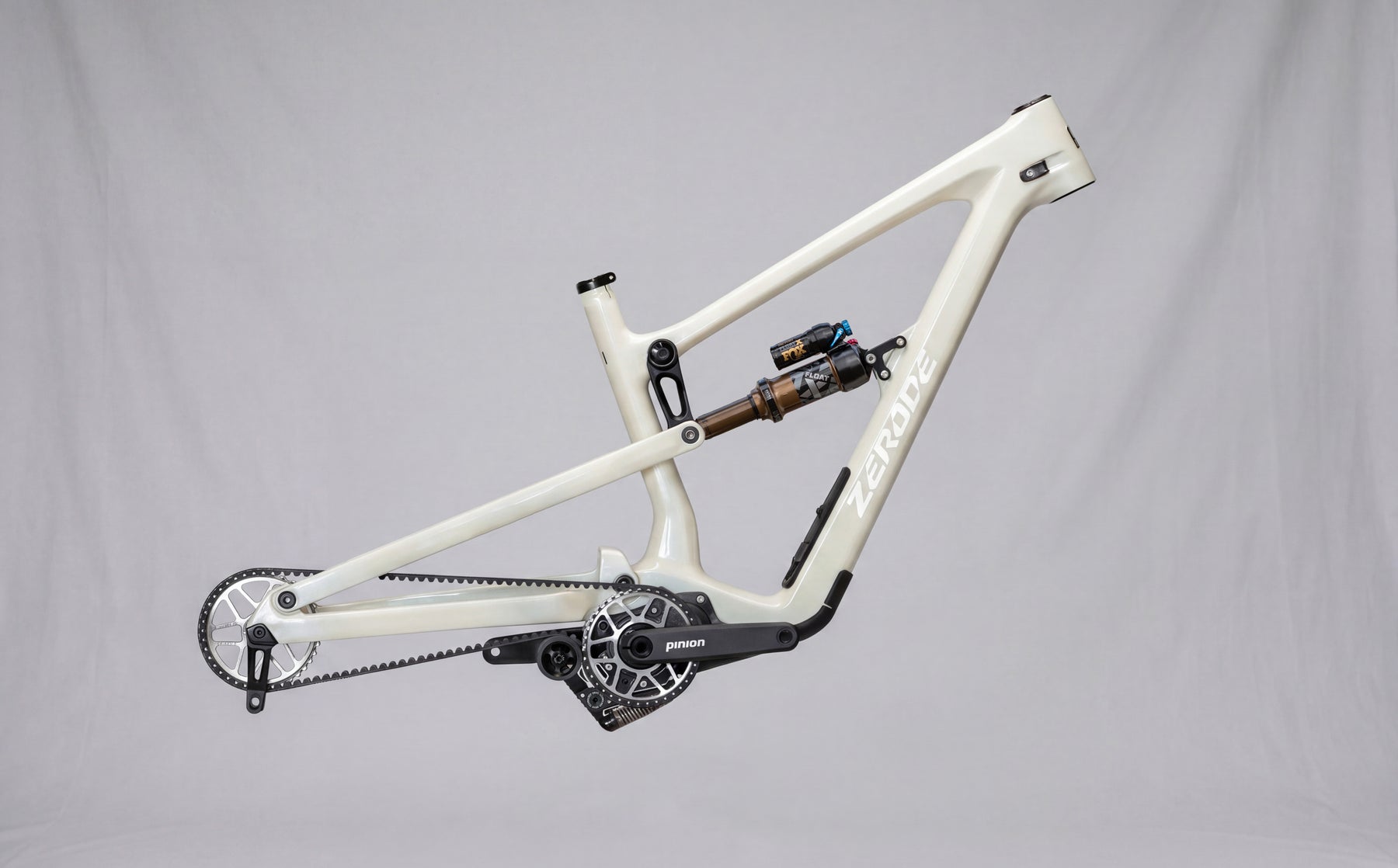

The Origin is our take on a Frame kit, providing you with everything you need to build a Shadow Trail with your existing parts, or a fresh setup.

The Origin kit includes

Shadow frame with Fox Float X Factory
29 and MX shock mounts
Pinion C1.9i Smart.shift gearbox
Pinion BT-1 belt tensioner
Pinion crankset - 165mm
Pinion shifter
Gates CDX BLK & CDXSL cogs
Gates belt
System charger & Battery

Current lead times:

Black M/L: First run sold out - Next batch shipping July

Amazonian M/L: First run sold out - Next batch shipping July - Images coming soon!

Cream white M/L: First run sold out - Next batch shipping July

All colors XL: Late 2026

All colors Small: End of 2026

$9,085.00

Tax included.

Prices include GST

[{"id":53318523420990,"title":"Small \/ Raw carbon black -  gloss","option1":"Small","option2":"Raw carbon black -  gloss","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Shadow Trail Origin - Small \/ Raw carbon black -  gloss","public_title":"Small \/ Raw carbon black -  gloss","options":["Small","Raw carbon black -  gloss"],"price":908500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53318523486526,"title":"Small \/ Cream white -  gloss","option1":"Small","option2":"Cream white -  gloss","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Shadow Trail Origin - Small \/ Cream white -  gloss","public_title":"Small \/ Cream white -  gloss","options":["Small","Cream white -  gloss"],"price":908500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53318523552062,"title":"Small \/ Amazonian green","option1":"Small","option2":"Amazonian green","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Shadow Trail Origin - Small \/ Amazonian green","public_title":"Small \/ Amazonian green","options":["Small","Amazonian green"],"price":908500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53318523617598,"title":"Medium \/ Raw carbon black -  gloss","option1":"Medium","option2":"Raw carbon black -  gloss","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Shadow Trail Origin - Medium \/ Raw carbon black -  gloss","public_title":"Medium \/ Raw carbon black -  gloss","options":["Medium","Raw carbon black -  gloss"],"price":908500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53318523683134,"title":"Medium \/ Cream white -  gloss","option1":"Medium","option2":"Cream white -  gloss","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Shadow Trail Origin - Medium \/ Cream white -  gloss","public_title":"Medium \/ Cream white -  gloss","options":["Medium","Cream white -  gloss"],"price":908500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53318523748670,"title":"Medium \/ Amazonian green","option1":"Medium","option2":"Amazonian green","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Shadow Trail Origin - Medium \/ Amazonian green","public_title":"Medium \/ Amazonian green","options":["Medium","Amazonian green"],"price":908500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53318523814206,"title":"Large \/ Raw carbon black -  gloss","option1":"Large","option2":"Raw carbon black -  gloss","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Shadow Trail Origin - Large \/ Raw carbon black -  gloss","public_title":"Large \/ Raw carbon black -  gloss","options":["Large","Raw carbon black -  gloss"],"price":908500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53318523879742,"title":"Large \/ Cream white -  gloss","option1":"Large","option2":"Cream white -  gloss","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Shadow Trail Origin - Large \/ Cream white -  gloss","public_title":"Large \/ Cream white -  gloss","options":["Large","Cream white -  gloss"],"price":908500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53318523945278,"title":"Large \/ Amazonian green","option1":"Large","option2":"Amazonian green","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Shadow Trail Origin - Large \/ Amazonian green","public_title":"Large \/ Amazonian green","options":["Large","Amazonian green"],"price":908500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53318524010814,"title":"Extra large \/ Raw carbon black -  gloss","option1":"Extra large","option2":"Raw carbon black -  gloss","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Shadow Trail Origin - Extra large \/ Raw carbon black -  gloss","public_title":"Extra large \/ Raw carbon black -  gloss","options":["Extra large","Raw carbon black -  gloss"],"price":908500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53318524076350,"title":"Extra large \/ Cream white -  gloss","option1":"Extra large","option2":"Cream white -  gloss","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Shadow Trail Origin - Extra large \/ Cream white -  gloss","public_title":"Extra large \/ Cream white -  gloss","options":["Extra large","Cream white -  gloss"],"price":908500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53318524141886,"title":"Extra large \/ Amazonian green","option1":"Extra large","option2":"Amazonian green","option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Shadow Trail Origin - Extra large \/ Amazonian green","public_title":"Extra large \/ Amazonian green","options":["Extra large","Amazonian green"],"price":908500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Frame: Carbon Fiber. 140 mm travel. Internal cable routing and internal storage. Interchangeable front shock mount for both full 29 and mullet
Rear shock: FOX Float-X Factory
Gearbox and shifter: Pinion C1.9i - 9 speed, Smart.Shift, Pinion TE-1 electronic trigger shifter
Belt: Gates CDX 122t (Medium) or 125t (Large).
Sprockets: Gates CDX 39t
Belt tensioner: Pinion BT-1
Cranks: Pinion 165 mm
Frame warranty: Lifetime (first owner)

See our sizing chart here.

SMALL

Under construction

MEDIUM

Reach: 466 mm
Stack: 624 mm
ST Angle: 79°
HT Angle: 64,5°
ST length: 420 mm
HT Length: 110 mm
Top tube effective: 586 mm
Front-center: 795 mm
CS Length: 435 mm
BB Height: 338 mm
BB Drop: 38 mm
Wheelbase: 1228 mm
Standover: 695 mm

LARGE

Reach: 495 mm
Stack: 633 mm
ST Angle: 79°
HT Angle: 64,5°
ST length: 450 mm
HT Length: 120 mm
Top tube effective: 617 mm
Front-center: 830 mm
CS Length: 450 mm
BB Height: 338 mm
BB Drop: 38 mm
Wheelbase: 1278 mm
Standover: 698 mm

EXTRA LARGE

Under construction

FRAME MATERIAL: Carbon Fiber. Internal cable routing and internal storage. Interchangeable front shock mount for both full 29 and mullet

TRAVEL: 140 mm

REAR SHOCK: 230x60 mounting hardware: Top: 20 mm width x 8 mm bore. Bottom: 30 mm width x 8 mm bore.

HEADTUBE: ZS44/ZS56

BRAKE MOUNT: 180 mm PM

SEATPOST: 31.6 mm inner (seatpost), 34.9 mm outer (clamp)

DRIVE TRAIN: Pinion C.Line Gearbox

REAR HUB: 148 mm x 12 mm

WEIGHT: 2800 grams (size medium)

WARRANTY: Lifetime (first owner)

Frameset shipping (in NZ Dollars)

NZ - $75

Australia - $285

SE Asia - $525

North America- $695

Europe - please visit www.zerode.eu

$253.00

Tax included.

happy riders worldwide

★★★★★
I sure as hell felt like I was full of indestructible teenage courage & angst. With traction for days & tank-like stability, you can go wherever you want when you're riding the Taniwha. The bike has a stability to it, or maybe a calmness is a better way to put it, that makes a rider feel like they're more skilled & brave.
Mike Levy - PinkBike
Canada

★★★★★
I was instantly flashed by the performance of this bike. All the little things i disliked with my eagle drivetrain are gone... shifting while standing (top of the hill) or smashing a couple of gears.. I dont think I am ever going back to a "regular" drivetrain.
Samuel Tertel
Germany

★★★★★
I just returned from 4 weeks riding in Italy, and I took my Katipo. The bike performed flawlessly in every situation it put it in. I have been super happy with the Katipo from day 1 out of the box and this trip cemented my happiness!
Tim Miller
UK

★★★★★
This thing handles WAY more than it should for a Trail bike!
David Hoganson
Snowshoe, USA

★★★★★
This is the best bike I have ever owned. By miles. I can never own another bike a with a derailleur. Ever.
Steve "Chewy" Gould
Hong Kong

★★★★★
Not only does the Taniwha have the best suspension and handling in it's class, in my view it has the best value because it doesn't need constant maintenance and replacement.
James
Nelson, New Zealand

★★★★★
I have never felt so stable and confident that my my bike is going to grip to the ground or pop when I want it to.
Jamie Garrod
Owner - New Zealand Mountain Biking

★★★★★
Having ridden normal enduro bikes and also extreme singlespeed configurations, I was simply amazed: the Taniwha combines the best of both worlds. It gives the absolute dynamic of singlespeed with an ultra-light rear, while combining a complete and responsive transmission system. The weight distribution gives the bike extraordinary stability. And the belt transmission gives a feeling of absolute serenity by eliminating all vibrations in the frame. This is the best bike I have ever ridden! And by far!
Alexis Righetti
France
